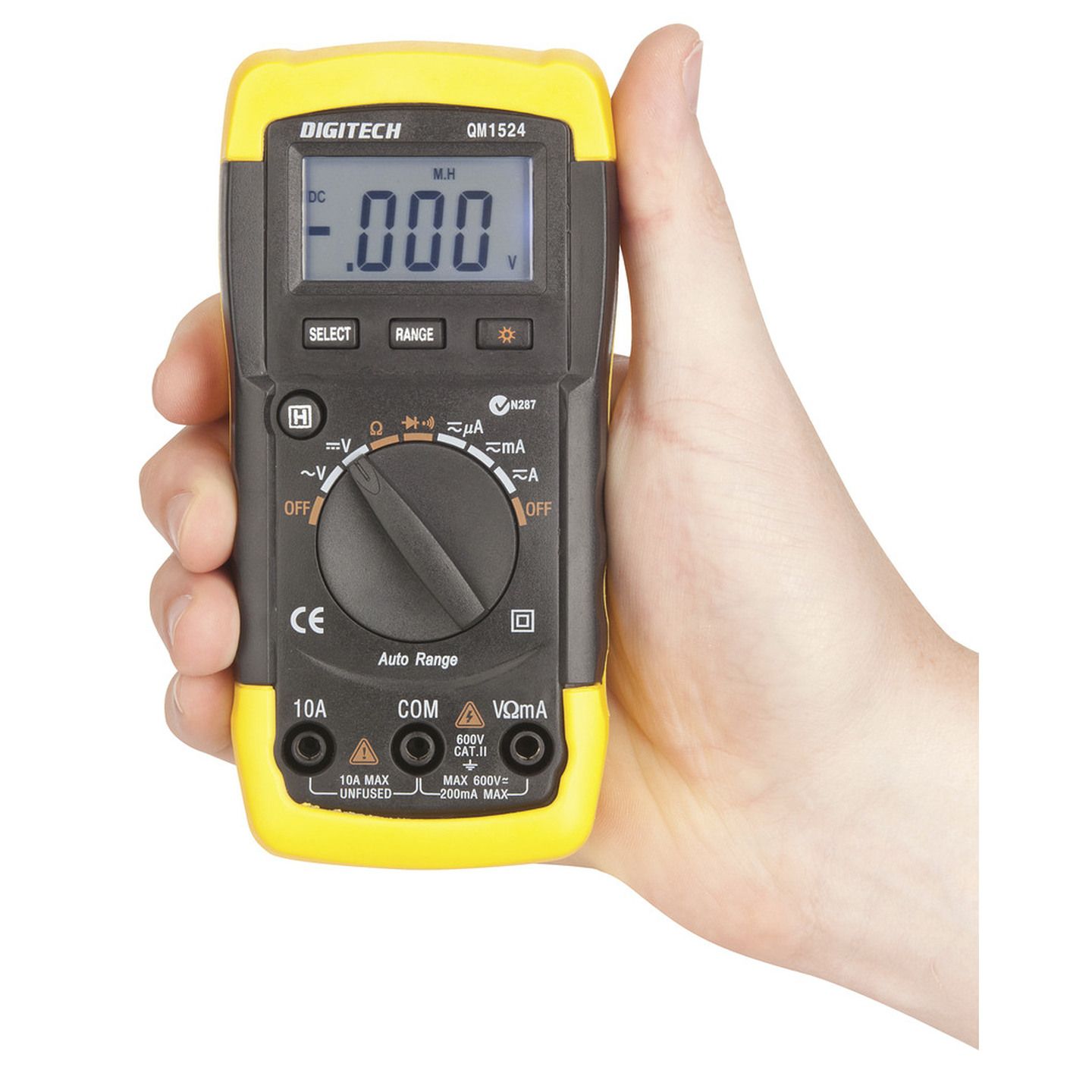

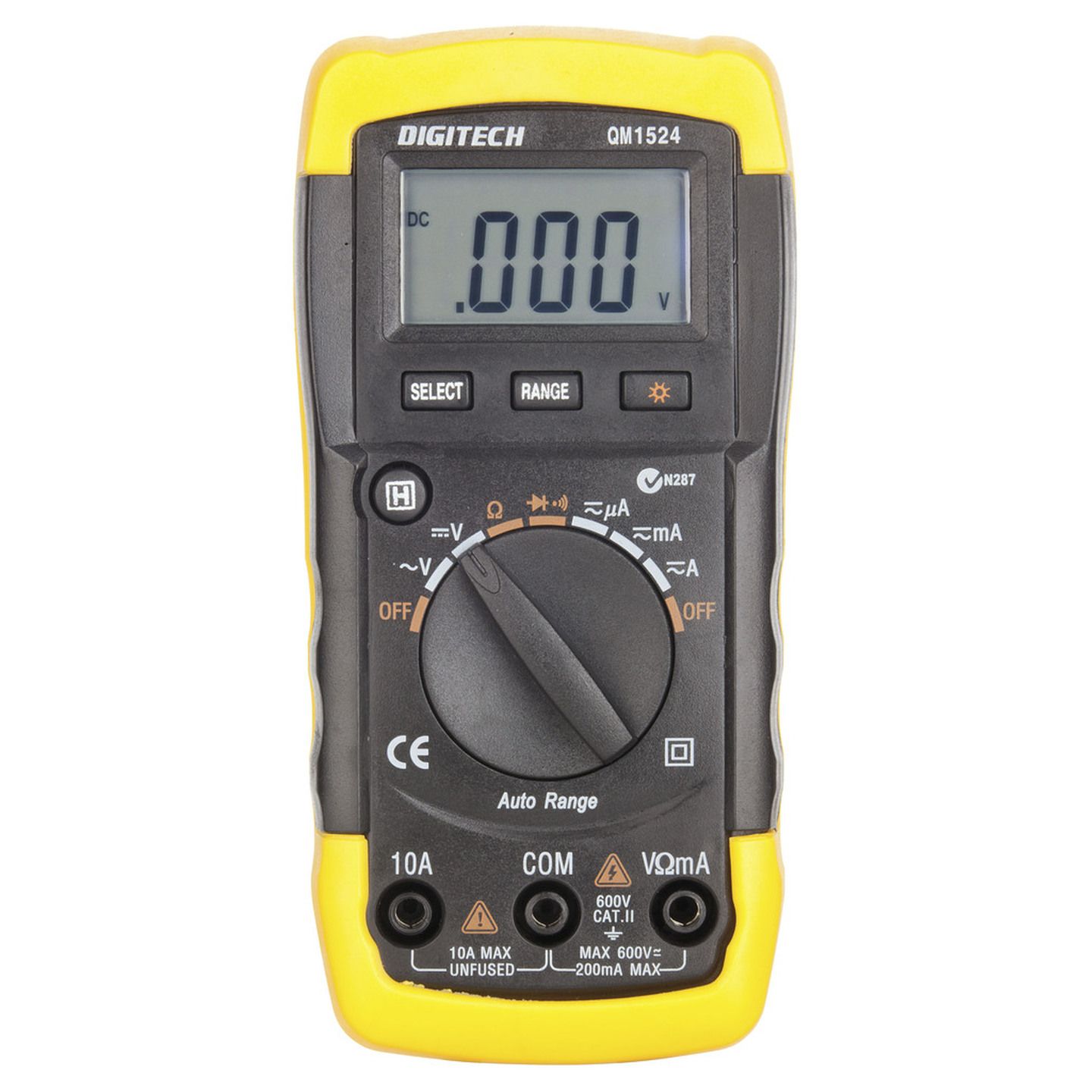

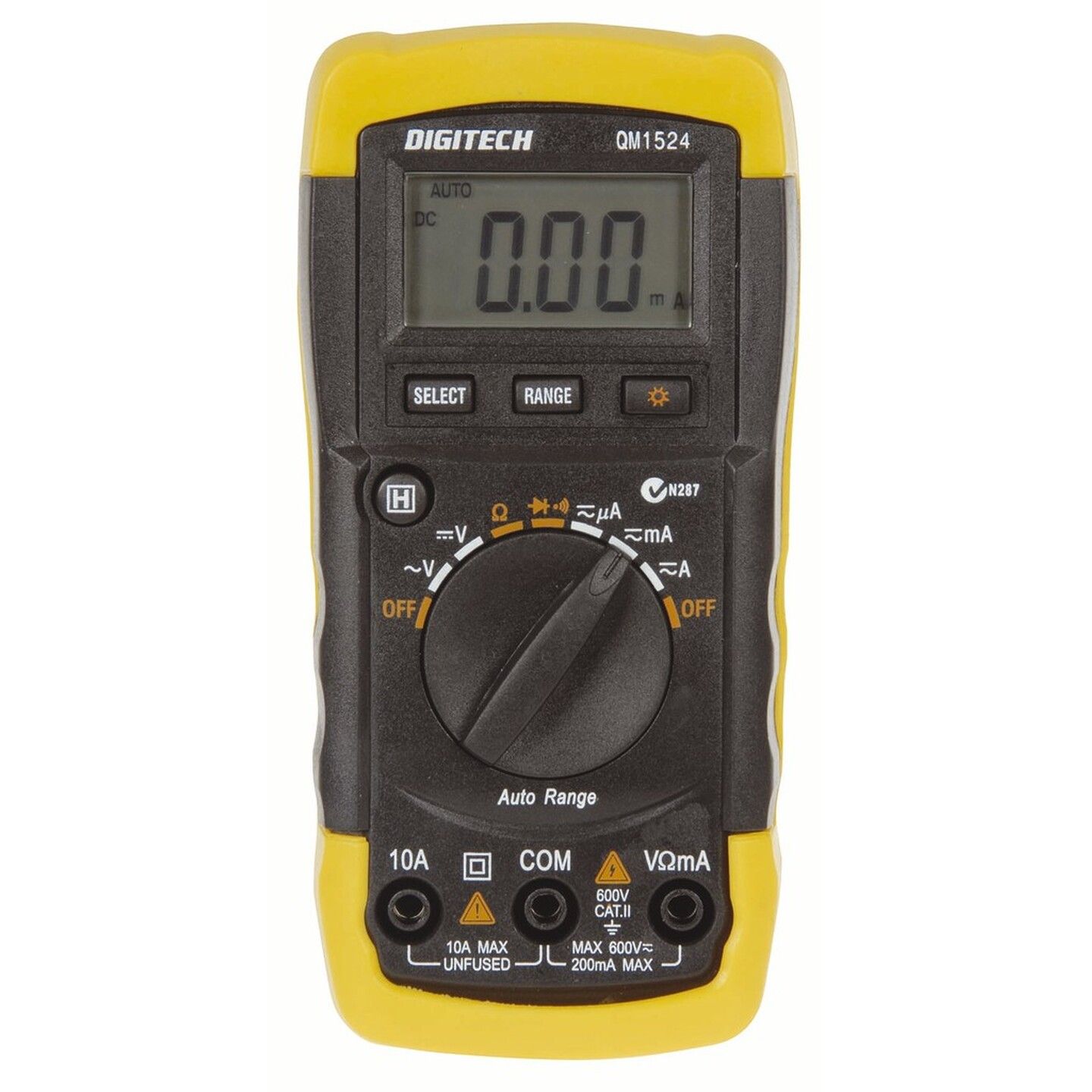

Cat II Autoranging DMM

CAT.NO: QM1524

1/4

Unavailable

$12.78$24.95

Save $12.17

Store

Choose a store for stock availability

Superseded Product

This product has been replaced by QM1529. Click for the replacement products.

Cat II Autoranging DMM

$12.78

Overview

NOTE: This product has been replaced by QM1529. Click here for the replacement

This Cat II DMM is suitable for voltages up to 600VAC and has 15mm high digits for easy measurement.

Features include:
• Overload protection
• AC/DC Voltage up to 600V
• AC/DC Current up to 10A
• Diode Check
• 600V Cat II
• 3.5 Digits
• 1999 Count
• Data Hold
• Back Light
• In-built Stand
• Dimensions: 140(H) x 70(W) x 31(H)mm

Specifications

Digital Multi-Meter

Count Maximum Reading

2000.0 count

True RMS

false

Autorange

true

Meter

Meter Input Impedence

10.0 MΩ

Measures diode

true

Special Features

Pocket Sized

Input Protection Fuse

200.0 mA

Foldout Stand

true

Casing

Rubber

Meter Display

Display Type

LCD

Display Backlight

true

Power from disposable battery

Size / Shape

AAA

Batteries included

true

Batteries can be replaced by user

true

Compartment location

Internal / In-built

How is battery compartment kept closed

Clip and Screw

Meter Data Control

Data Hold

true

Meter Safety Rating

Safety Category

Cat II

Safety Rating Max Volt

600.0 V

Meter Probes

Probe safety rating

Cat II

Measures Voltage AC

AC Voltage Ranges

200.0µV,2.0mV,20.0mV,200.0V,600.0V

AC Voltage Accuracy

1.0 %

Measures Voltage DC

DC Voltage Ranges

200.0mV,2.0V,20.0V,200.0V,600.0V

DC Voltage Accuracy

0.8 %

Measures Current AC

AC Current Ranges

200.0µA,2.0mA,20.0mA,200.0mA,10.0A

AC Current Accuracy

3.0 %

Measures Current DC

DC Current Ranges

200.0µA,2.0mA,20.0mA,200.0mA,10.0A

DC Current Accuracy

3.0 %

Measures Resistance

Resistance Ranges

200.0Ω,2.0kΩ,20.0kΩ,200.0kΩ,2.0Ω

Resistance Accuracy

1.5 %

Measures Continuity

Continuity indicator

On Panel

Continuity buzzer

true

Product Dimensions

Length

140.0 mm

Width

70.0 mm

Height

31.0 mm

Packaged Dimensions

3.5cm(Length) x 23.0cm(Width) x 14.0cm(Height)
