Arcade Joystick

Difficulty

Entertainment

Summary

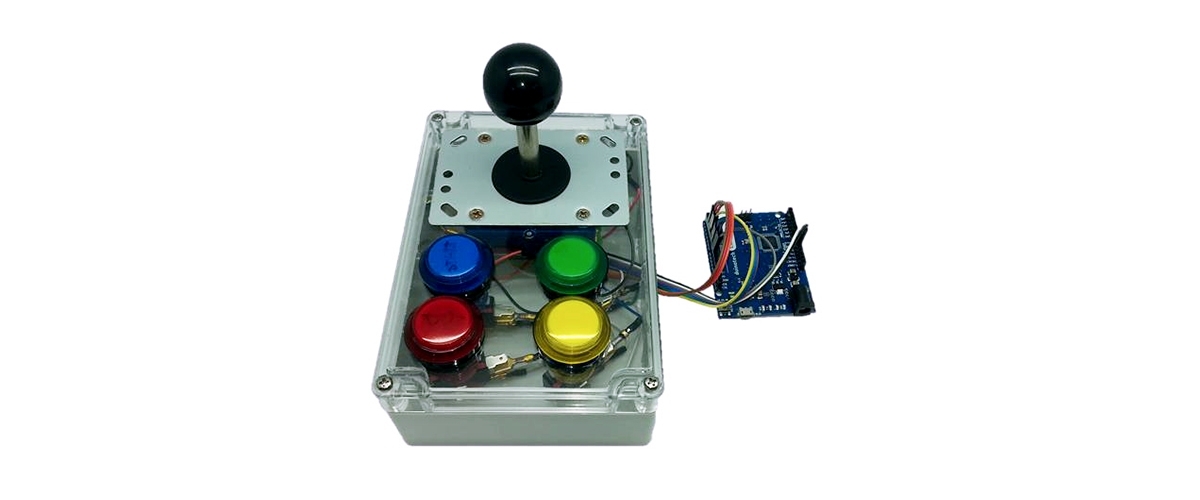

There's a lot of arcade emulators out there that can run on many computers including the Raspberry Pi so it only makes sense to play these emulators on some authentic hardware. Here we'll show you how to build an arcade style joystick using our new Arcade Pushbuttons and Arcade Joystick. We've got a Leonardo main board to emulate a USB keyboard so it can be used with any software that you can play with a keyboard. Just like any other Arduino design, it can of course be customised to more buttons or even mapped to different keys. We've built ours in an ABS enclosure for portability but there's no reason you couldn't mount the controls directly to an arcade cabinet or even a coffee table.

Materials Required

1	Duinotech Leonardo r3 Main Board	XC4430
1	Arcade Joystick with Microswitches	SM1052
4	Red Arcade Button Switch with LED Illumination	SP0662
1	150mm Plug to Plug Jumper Leads - 40 Piece	WC6024
2	6.3mm Non-Insulated Spade Connectors Pk 10	PT4630
1	Sealed Polycarbonate Enclosure 171 x 121 x 55 - Clear Lid	HB6248

Table of Contents

Connection Table
Downloads
Assembly
Programming

Connection Table

Joystick	Leonardo	Wire Colour
Grounds (COM)	GND	White and Black
Joystick Up	D2	Brown
Joystick Right	D3	Red
Joystick Down	D4	Orange
Joystick Left	D5	Yellow
Green Button	D6	Green
Yellow Button	D7	Blue
Blue Button	D8	Purple
Red Button	D9	Grey

Downloads

Source code

Assembly

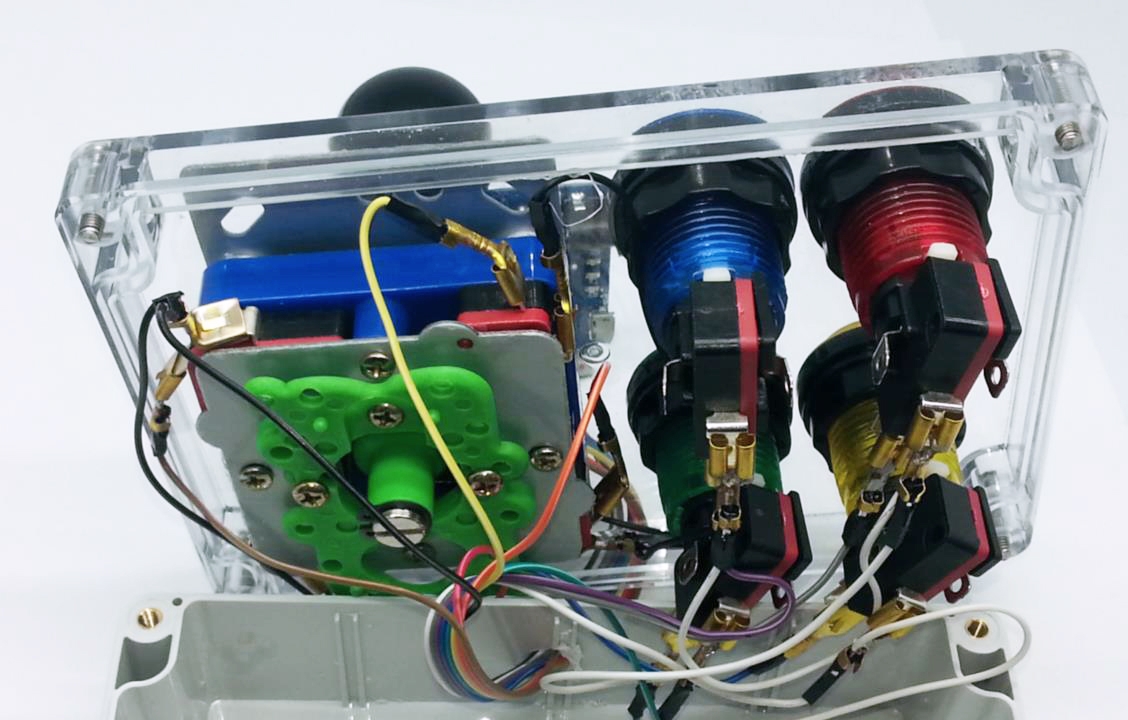

We built our joystick into a HB6248 enclosure which required drilling a number of 28 mm holes for the buttons and the joystick shaft as well as some smaller ones for the joystick mounting screws and for the cable to leave the enclosure. To mount the joystick we unscrewed the top plate and then clamped the lid of the box between the body and top plate of the joystick. Because there are so many ways of building this we will focus on the electronics rather than hardware side of construction. It might pay to test the mechanical build before connecting the electronics to make sure the wires are long enough and that you don't have to pull it apart after wiring it up.

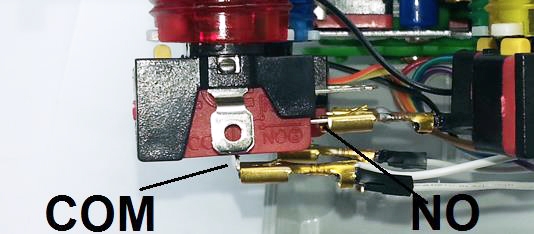

The joystick has four microswitches and each pushbutton has a single microswitch. For each microswitch we want to connect the COM to GND, and then the N/O tabs are connected to an IO pin on the Leonardo to sense whether the microswitch has been triggered. For the joystick these are the only two tabs. For the pushbuttons they are the lower two tabs.

Programming

Download the source code, extract into a new folder, open the .ino file in the Arduino IDE and press upload.

The sketch does not require any external libraries - the Keyboard.h library is included with recent versions of the IDE. The sketch will not work on boards like the UNO or Mega as they do not have USB support built into the main IC. Choose the Leonardo and its serial port and upload.

The sketch is very simple - the arrays at the start hold the digital pins and their corresponding keyboard keys. The number of pins and keys needs to match the PINCOUNT defined value. After initialising, the Leonardo scans the pins and if it detects a change it sends the corresponding key press or key release. A good guide to the keymappings and friendly names of some of the keys can be found on this page: https://www.arduino.cc/en/Reference/KeyboardModifiers.

Future Improvements

As noted above, the PINCOUNT value can be changed and the Leonardo has 20 IO pins plus another three on the ISP header so that if you need more buttons extra pins can be allocated. We only stopped at four buttons because the enclosure wasn't big enough to fit more.Alternatively, you could add a second joystick and some player two buttons so that the joystick will work for two-player games. USB supports up to 127 devices per bus so there is no reason a second unit cannot be built but with the keys programmed to their player two equivalents thus allowing two players to play at the same time.
