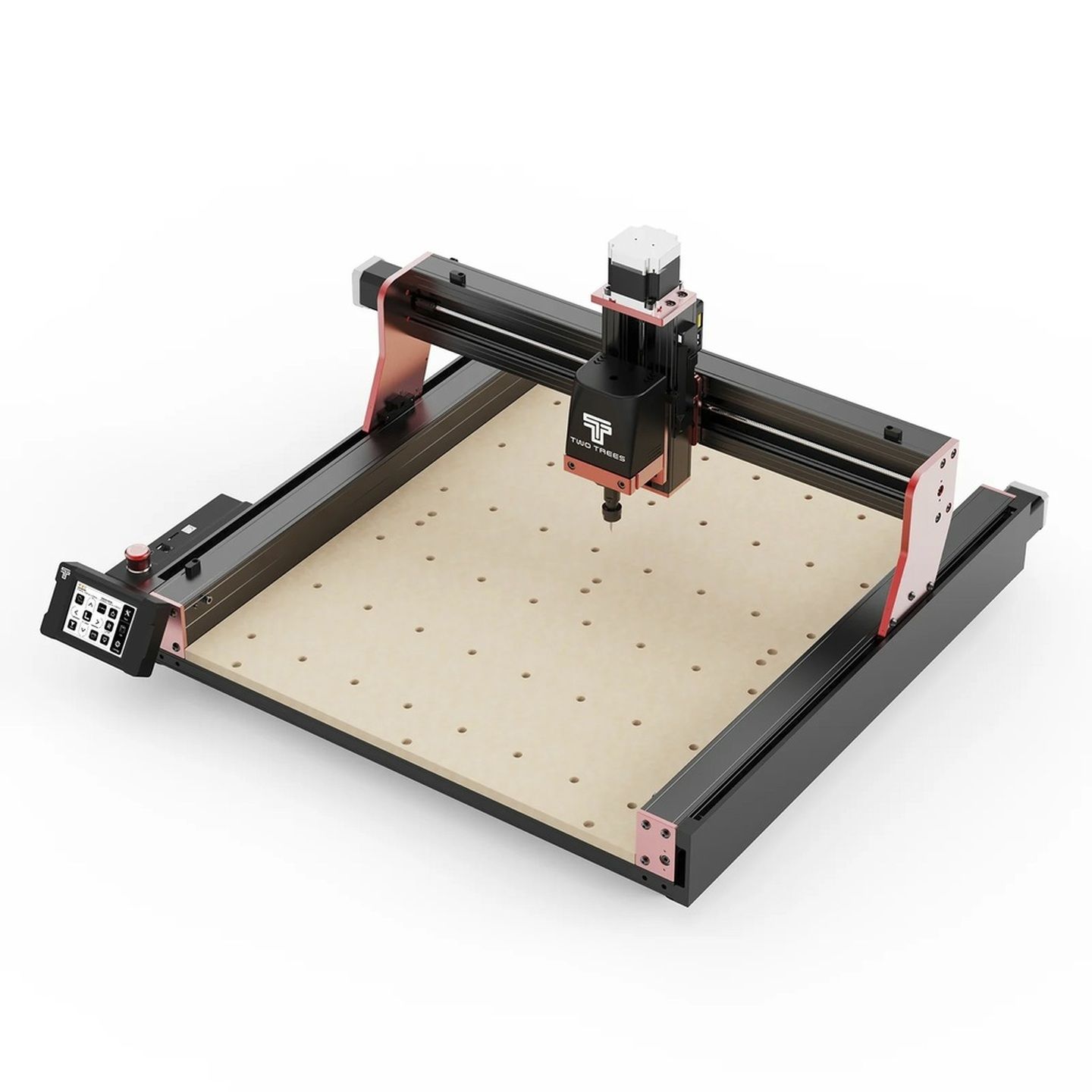

Two Trees TTC450 Pro CNC Router Machine

Two Trees TTC450 Pro CNC Router Machine

  • CAT.NO: TL9000
  • MPN: TTC450 PRO
New product
$1,199.00

Bulk Pricing

Spare Parts (17)

Store

Choose a store for stock availability
Two Trees TTC450 Pro CNC Router Machine
$1,199.00

The Twotrees TTC450 Pro CNC Router Bundle is a complete solution for your machining needs. It includes the TTC450 Pro CNC Router Machine. This bundle is designed for makers, educators, and small businesses, offering enhanced cutting performance and effective dust collection for a cleaner workspace.

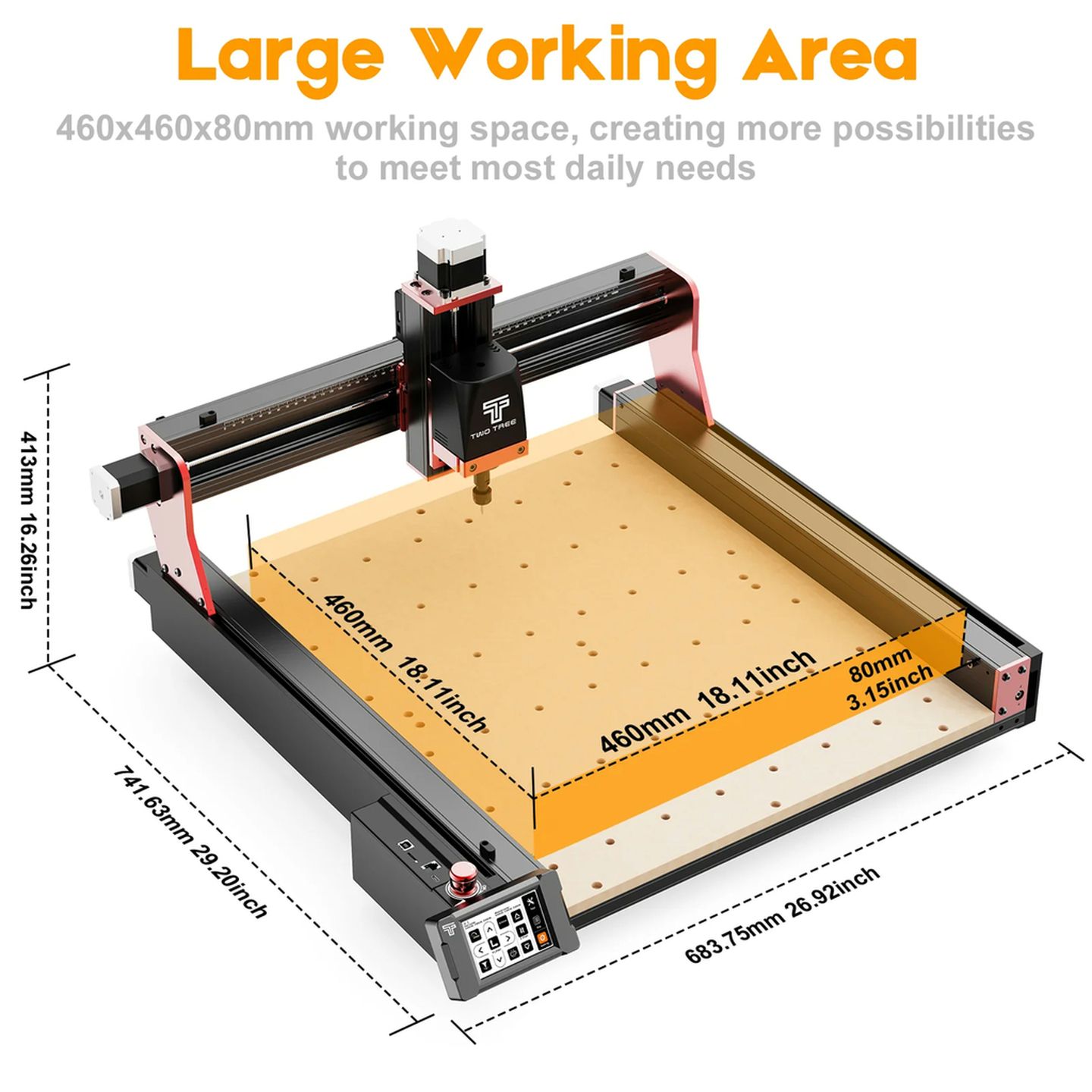

With a working area of 460 x 460 x 80mm, you can tackle a variety of projects from woodworking and sign making to acrylic cutting and prototyping. The high-performance spindle allows for precise machining of wood, acrylic, plastics, and soft metals.

This CNC router is beginner-friendly and supports various programming software, making it suitable for both novice and experienced users. Whether you're creating intricate designs or simple cuts, the TTC450 Pro provides the versatility and reliability you need.



Durable & Precise Construction: The reinforced aluminium and stainless-steel frame delivers stability and rigidity for accurate milling. A finely tuned mechanism ensures reliable results with ±0.05 mm precision.



Beginner-Friendly with Touchscreen Control: Get up and running fast with the intuitive 3.5-inch colour touchscreen interface and GRBL-based controls. Simple setup and clear navigation make the operation accessible to builders of all levels.



Features:

  • Complete CNC workshop solution with router, spindle, vacuum, and end mills
  • Versatile for engraving, carving, and milling various materials
  • Ideal for woodworking, sign making, and small business production


In the box:

  • Partially-assembled CNC router
  • External 24v 3A mains power supply and IEC mains cable
  • USB A-B cable
  • Safety goggles and hearing protector
  • Manual
CNC Routers and Accessories

Device Type

CNC Router Machine

Engraving Area

460 x 460 x 80 mm

Max Speed

800 mm/min

Motion System

Leadscrew Drive

Dimensions

560 x 550 x 390 mm

Weight

17.5 kg

Connectivity

USB

Software Compatibility

Candle

Safety Features

Emergency Stop Button

Frame Composition

Metal Frame

Bed Type

Aluminium Profile Bed

Driver Motors

NEMA 17 Stepper Motors

Positioning Accuracy

0.05 mm

Maximum Acceleration

1000 mm/s2

Drive Mechanics

Lead Screw Drive

Compatible Materials

Wood

Chuck Type

ER11

Chuck Material

Steel

Minimum Clamping Diameter

1 mm

Maximum Clamping Diameter

7 mm

Drive Reduction Ratio

Direct Drive

Stepper Motor Type

NEMA 17 Stepper

Product Dimensions

Length

742.0 mm

Width

689.0 mm

Height

413.0 mm

Weight

15.45 kg

Cable length

2.0 m

Diameter

689.0 mm

Packaged Dimensions

Packaged Dimensions

73.5cm(Length) x 39.5cm(Width) x 26.5cm(Height)
