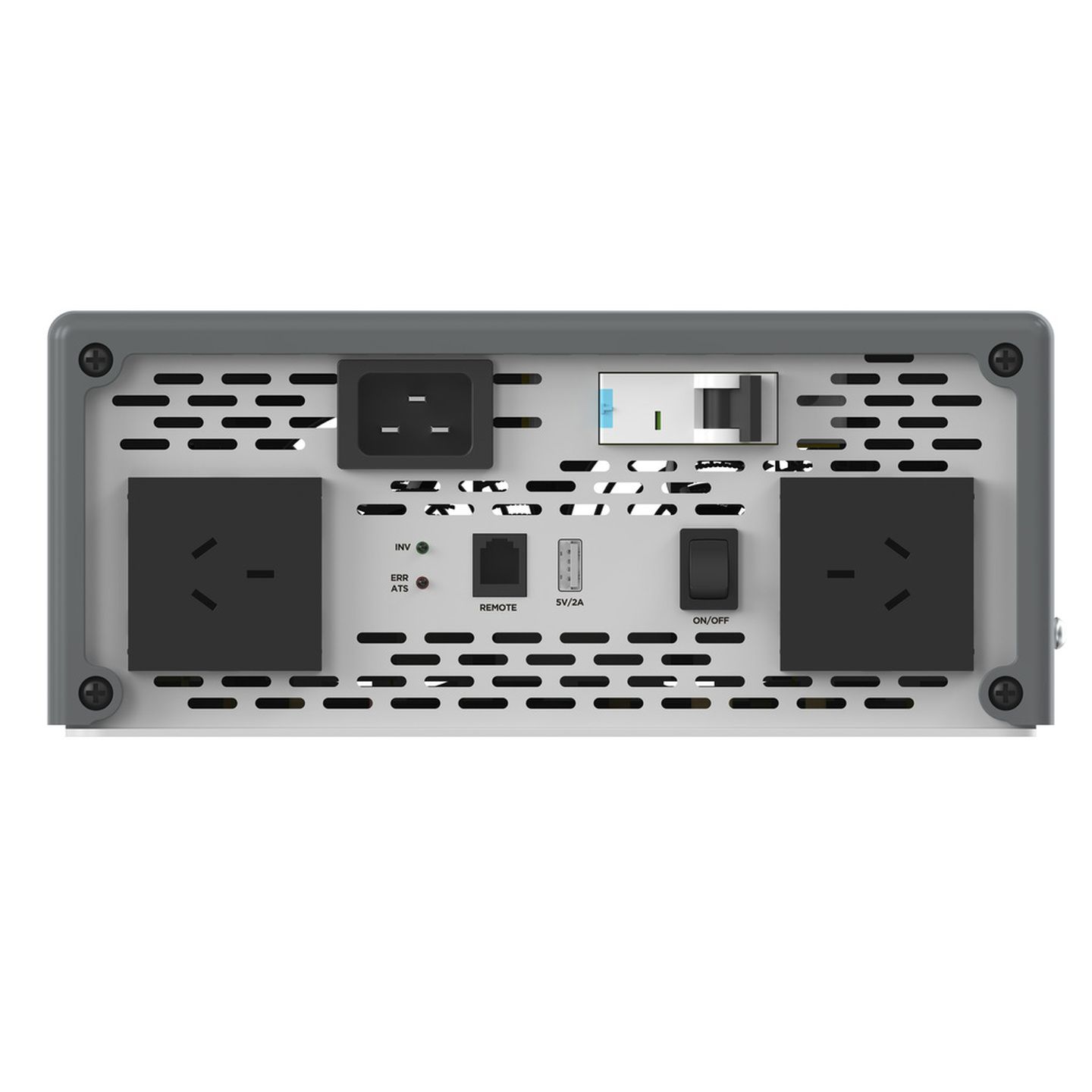

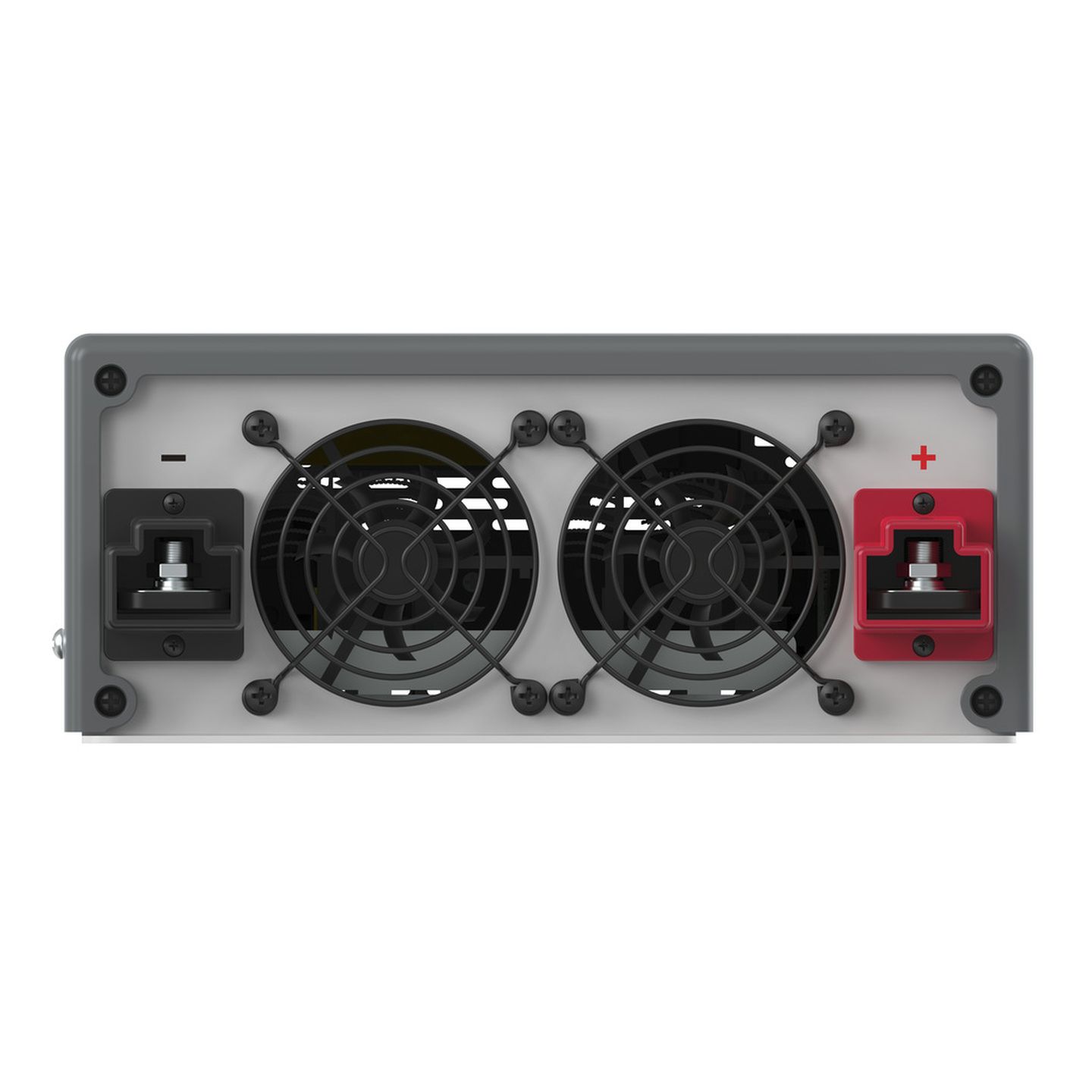

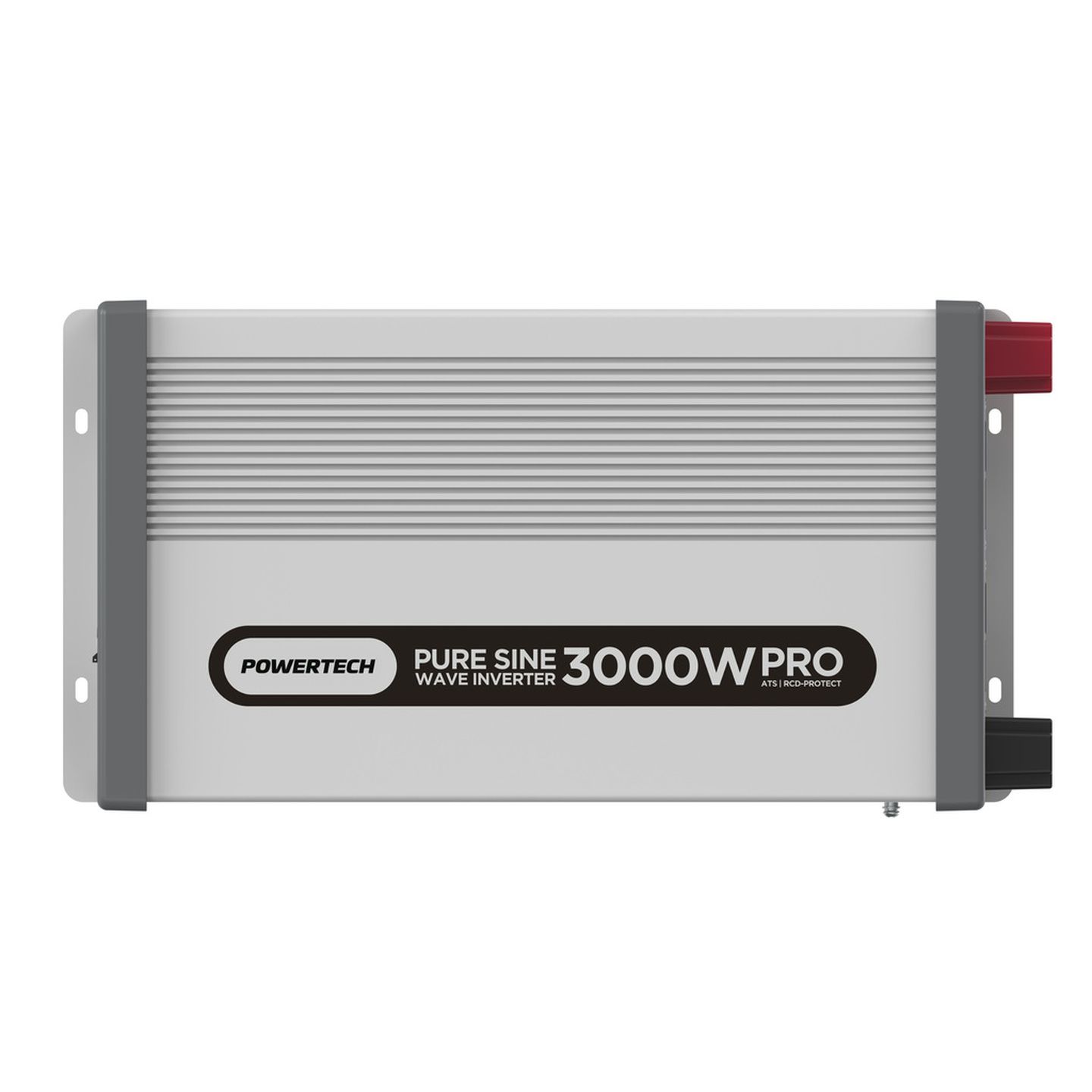

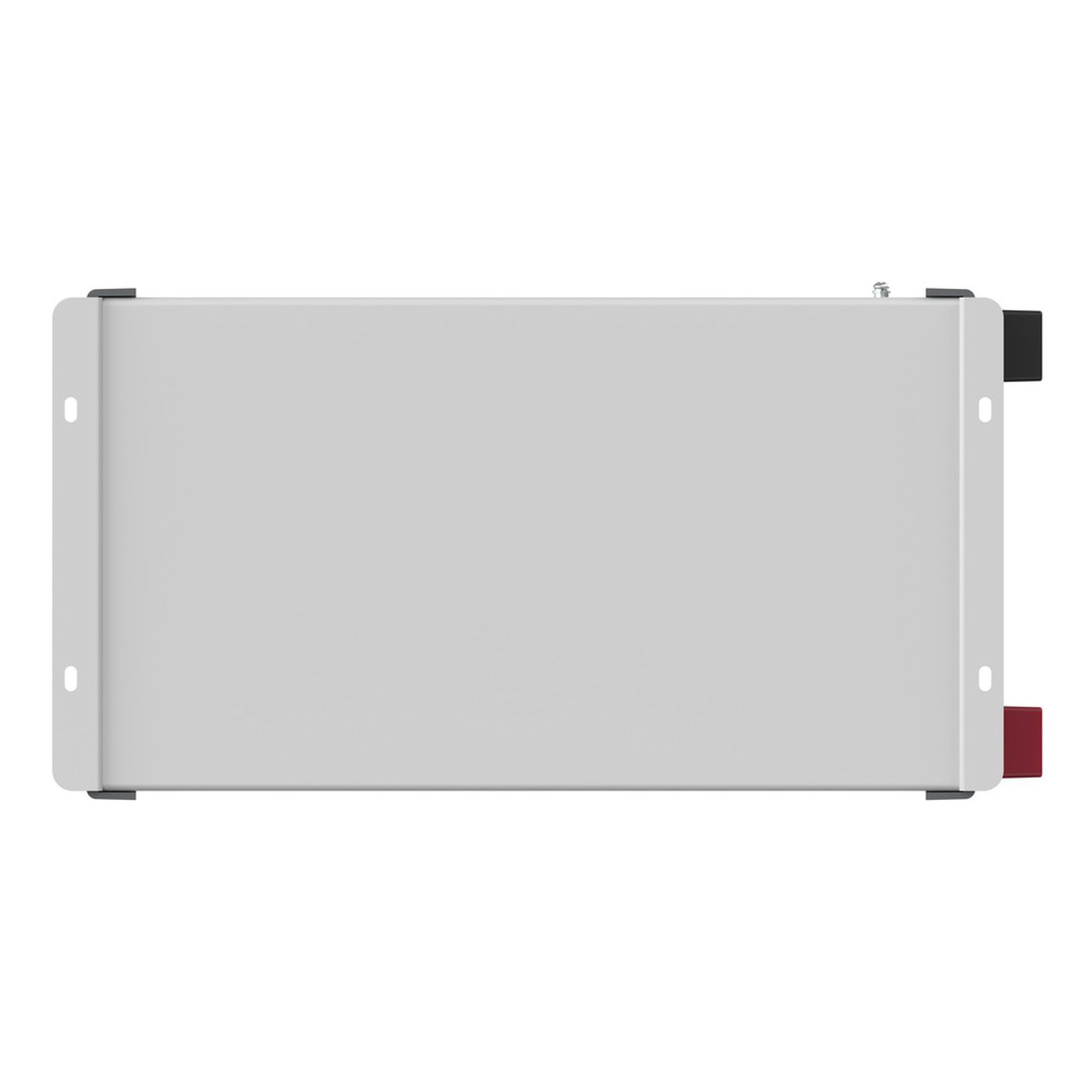

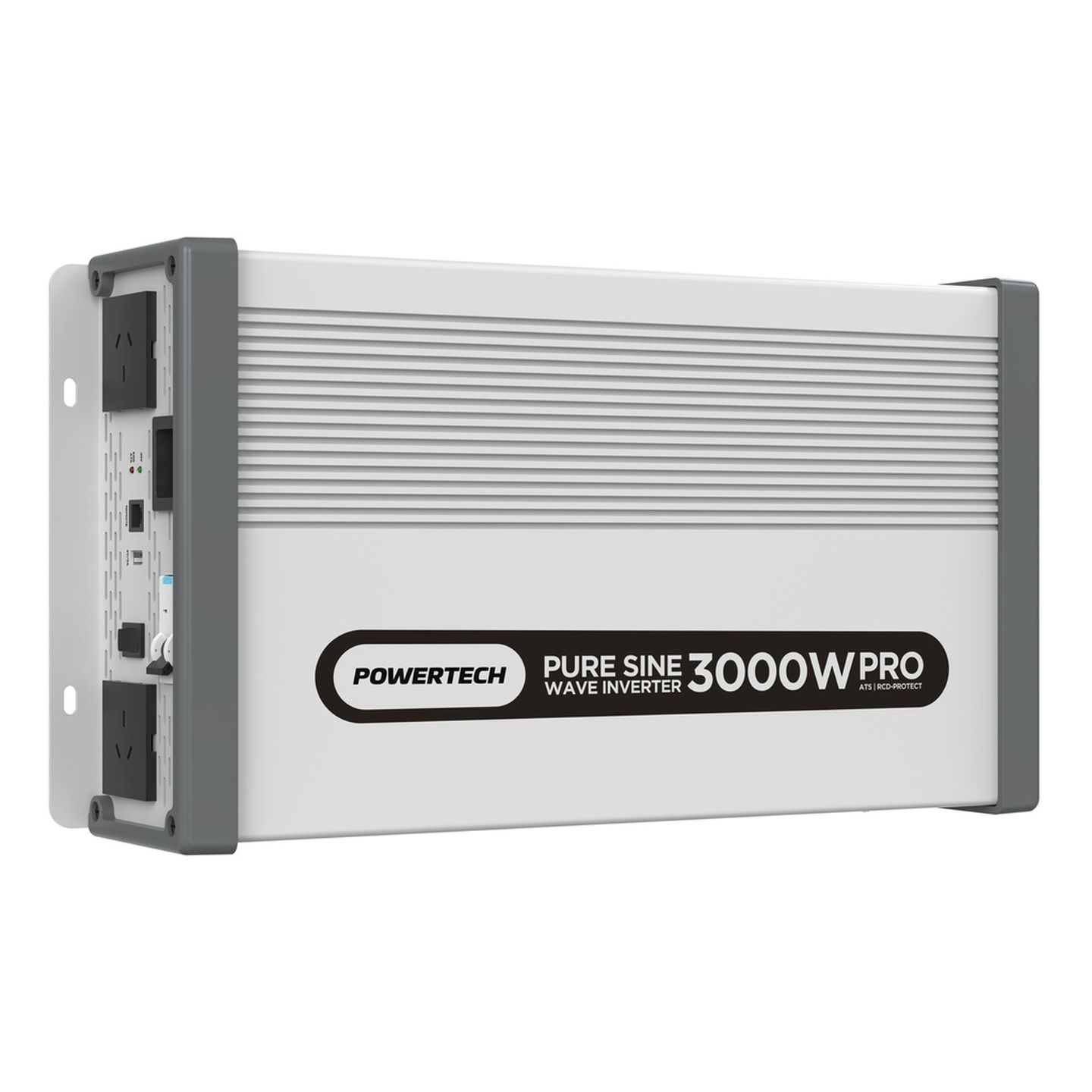

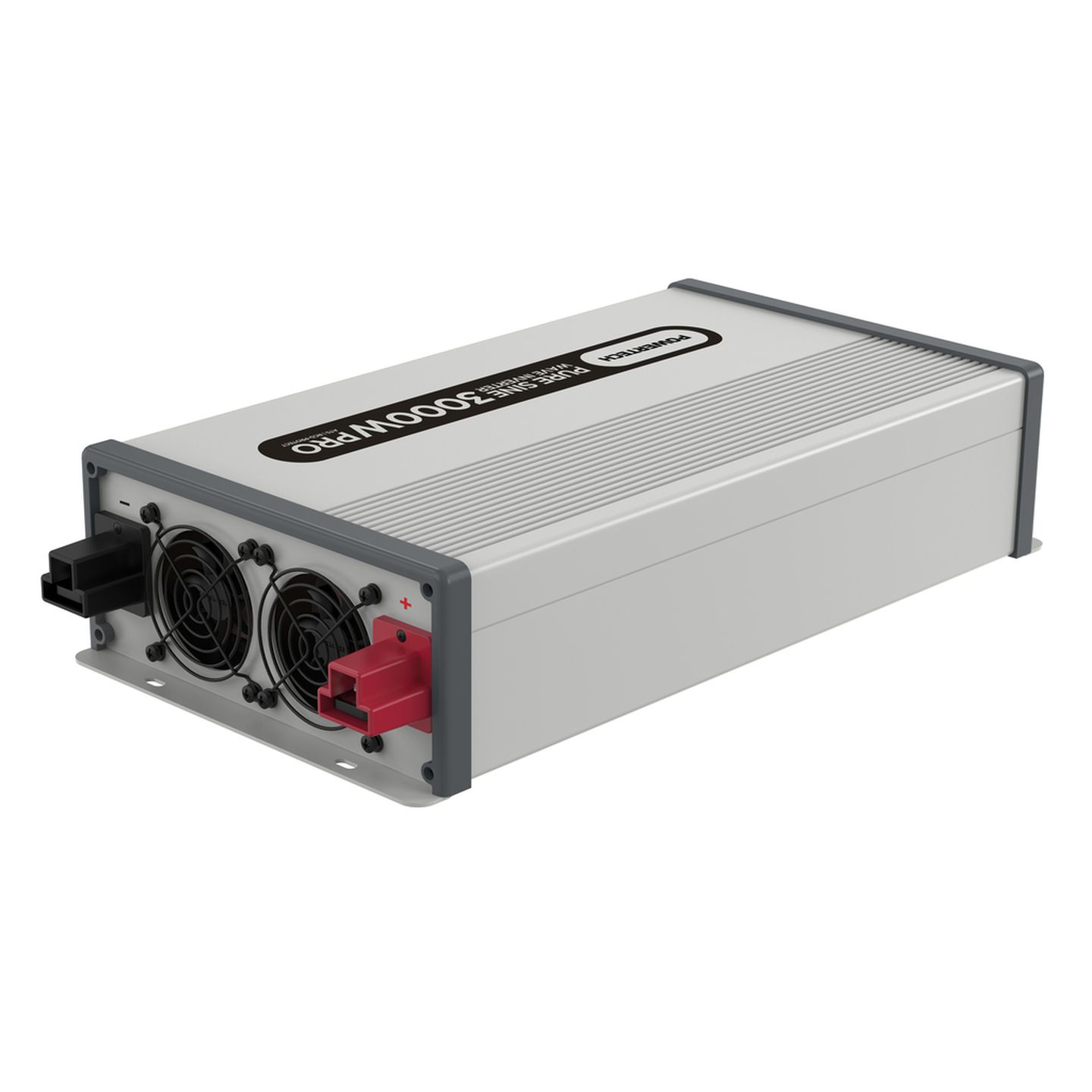

Pure Sine Wave ATS Inverter 3000W 12VDC to 230VAC

Pure Sine Wave ATS Inverter 3000W 12VDC to 230VAC

  • CAT.NO: MI5016
New product
$799.00

Bulk Pricing

Qty 1 - 2

$799.00 / Unit

Qty 3 - 5

$719.00 / Unit

Qty 6 +

$639.00 / Unit

Store

Choose a store for stock availability
Pure Sine Wave ATS Inverter 3000W 12VDC to 230VAC
$799.00

This 12V pure sine wave inverter provides up to 3000W continuous AC power for caravans, campers, 4WDs and off-grid power systems.



The built-in Automatic Transfer Switch (ATS) automatically switches between mains and inverter power when available, while the integrated RCD provides additional safety protection.



Dual cooling fans help maintain reliable operation under demanding loads. Backed by a three-year warranty.



An optional wired remote is available as MI5018.



Please note:

Battery leads are not included. 0GA or thicker cables with 8mm - 10mm bolt-holes recommended (TEA888 & TEA890).

15A IEC C19 Mains Power Lead like PS4124 is required for the ATS socket.



Features:

  • 3000W continuous AC output (6000W Surge)
  • Built-in ATS and RCD protection
  • Twin 230VAC outlets and USB charging port (5V 2A max)
  • Pure sine wave output for sensitive electronics



In the box:

  • Inverter
  • Manual
Product Dimensions

Length

514.0 mm

Width

289.0 mm

Height

110.0 mm

Weight

8000.0 g

Packaged Dimensions

Packaged Dimensions

55.6cm(Length) x 30.3cm(Width) x 16.0cm(Height)
