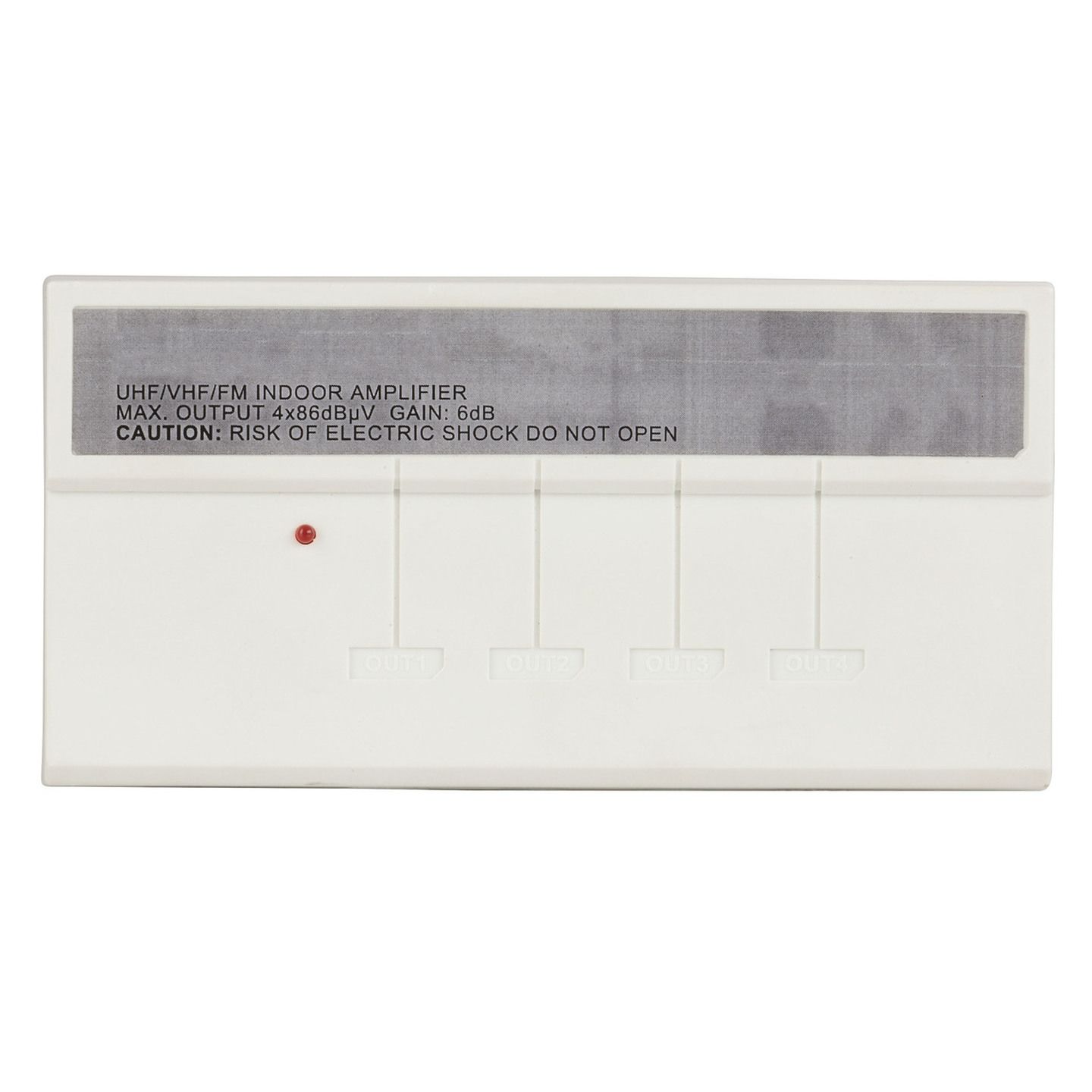

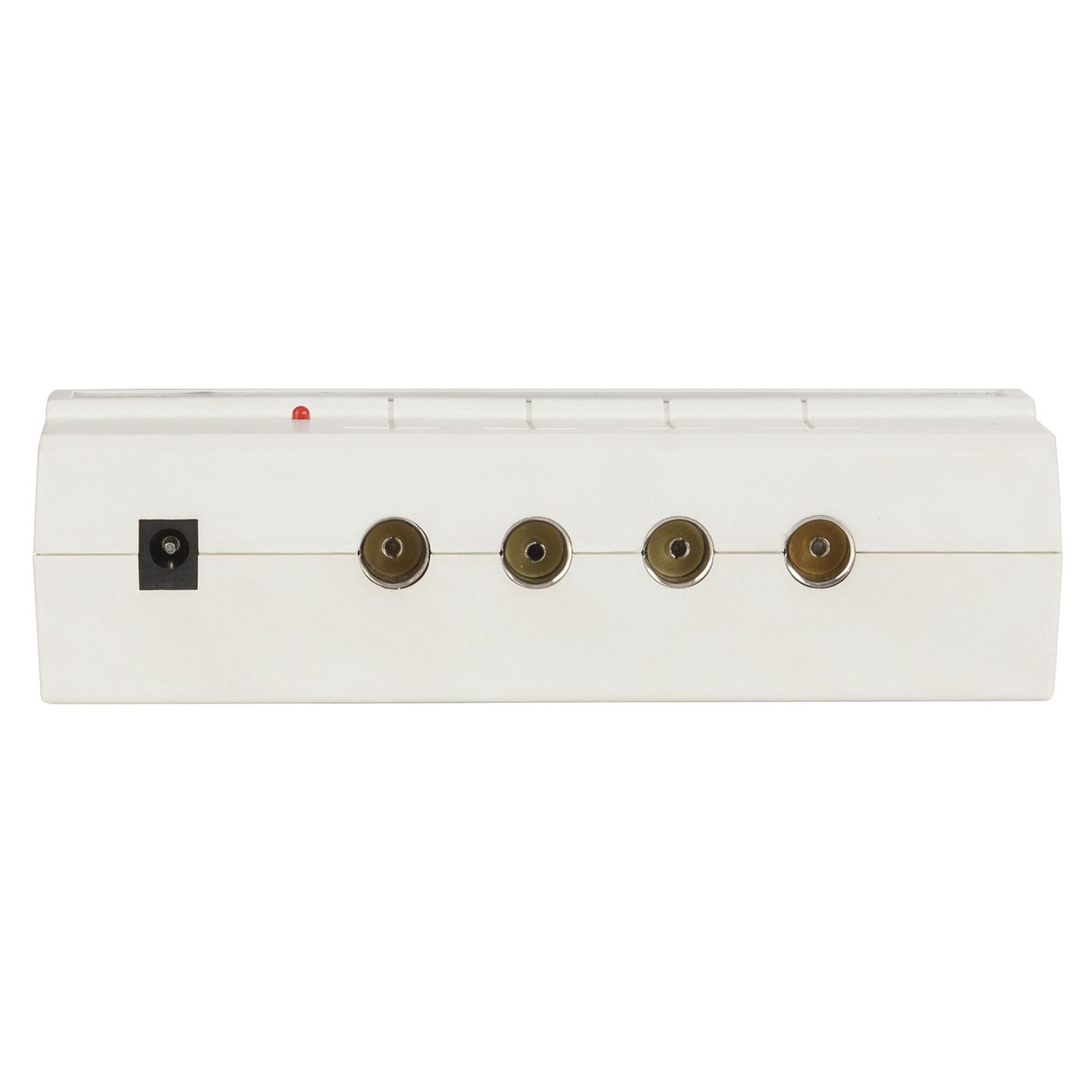

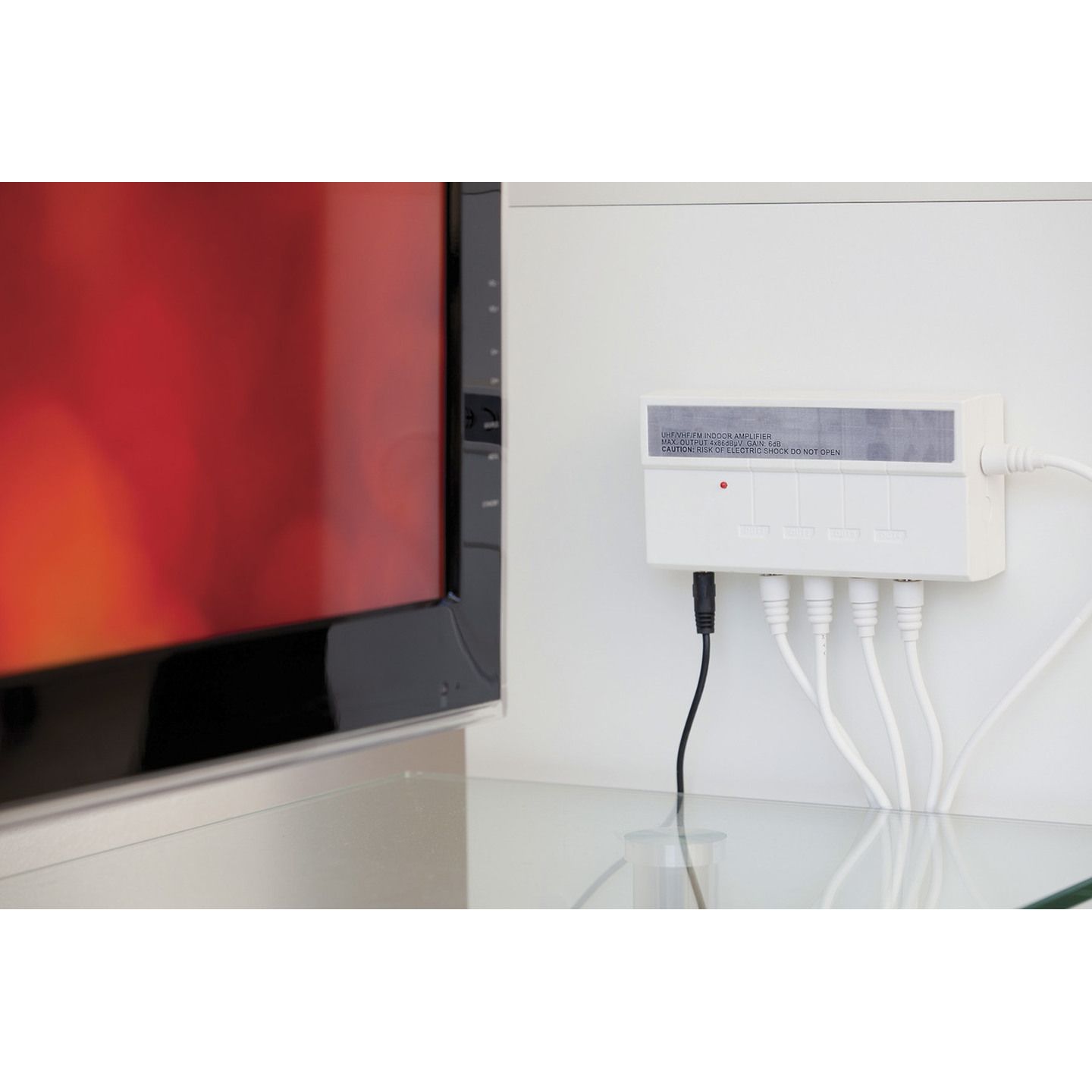

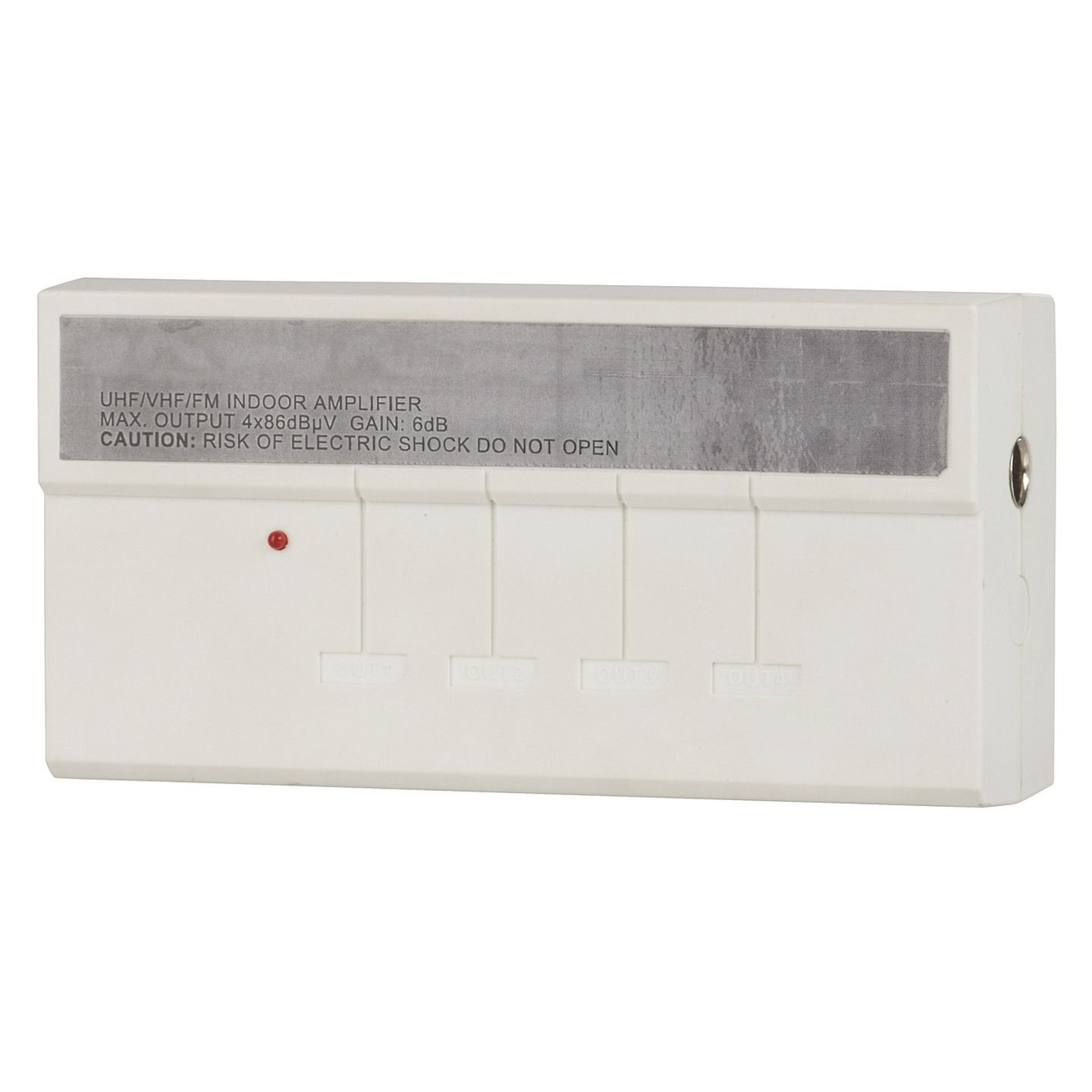

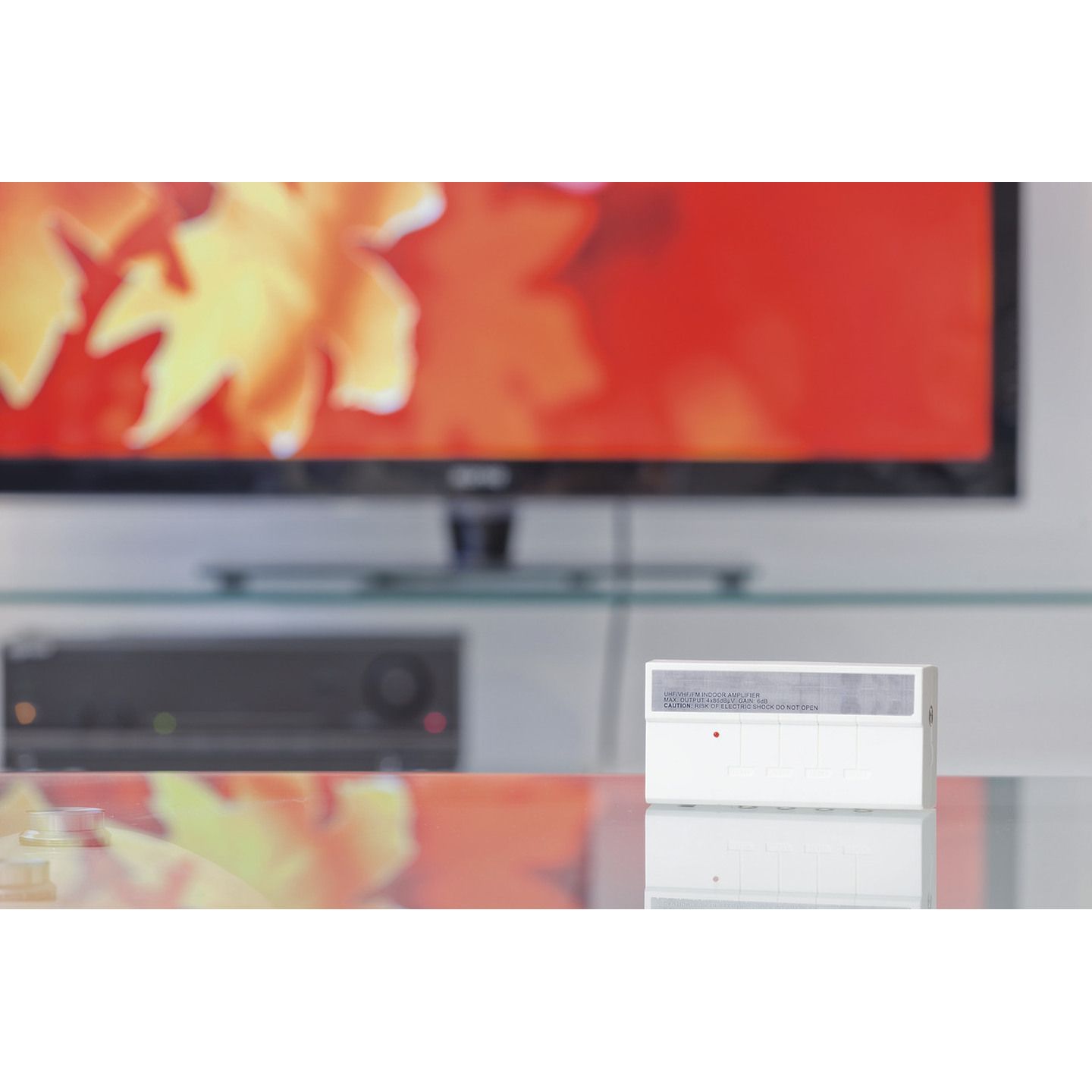

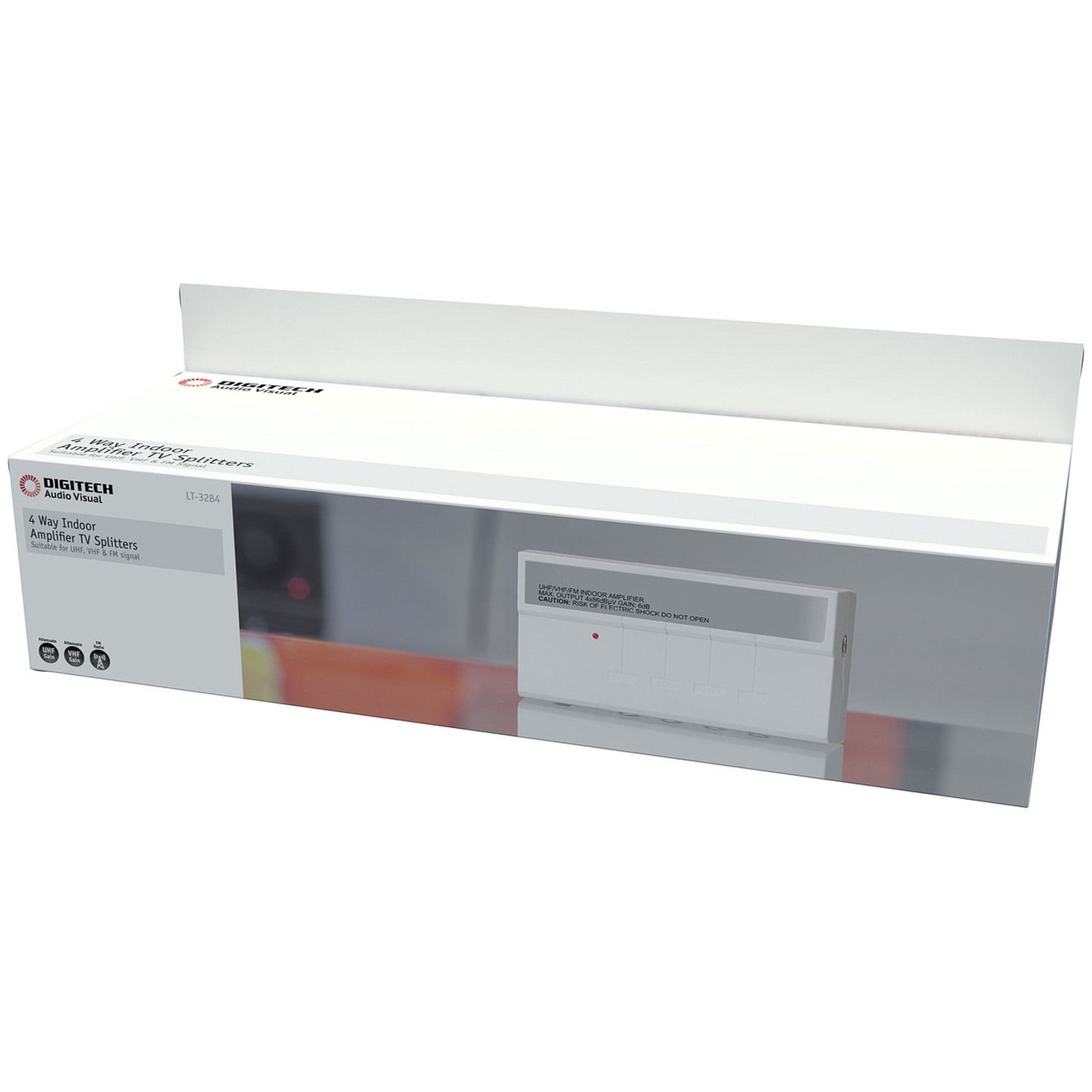

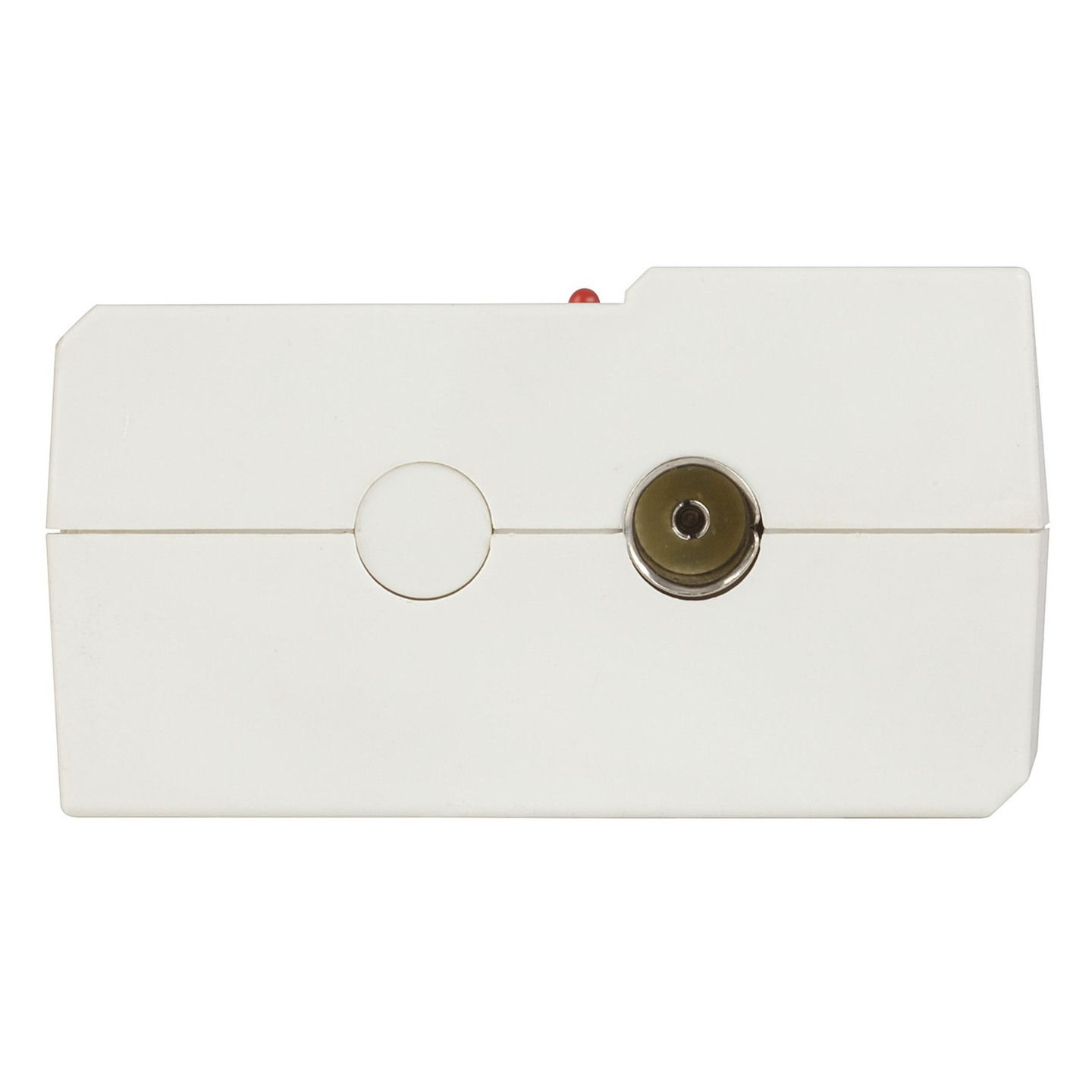

4 way Indoor Amplifier/Splitter

4 way Indoor Amplifier/Splitter

  • CAT.NO: LT3284
4 way Indoor Amplifier/Splitter
4 way Indoor Amplifier/Splitter
4 way Indoor Amplifier/Splitter
4 way Indoor Amplifier/Splitter
4 way Indoor Amplifier/Splitter
4 way Indoor Amplifier/Splitter
4 way Indoor Amplifier/Splitter
4 way Indoor Amplifier/Splitter
Unavailable
$5.18$29.95
Save $24.77

Store

Choose a store for stock availability
4 way Indoor Amplifier/Splitter
$5.18
Split and amplify your UHF, VHF or FM signals with these handy amplifier splitters. Features high gain and low noise to ensure your signal is of a high quality. Both units can be wall mounted for greater convenience.

4 way Indoor Amplifier/Splitter LT-3284
• Frequency range: 47-900MHz
• Output(max): 4 x 80dBuV
• Gain Average: 15dB/10dB (VHF/UHF)
• Nose: • Power 6VDC/50mA
• Dimensions: 158(L) x 80(W) x 45(D)mm

Also available:
LT3282 - 2 way Indoor Amplifier/Splitter
Antenna Amplifier

Usage Location

Indoor

UHF Frequency Range

47.0MHz-900.0MHz

UHF Noise Figure

5.0 dB

Amplifier Type

Indoor Booster

UHF Gain Control

10.0 dB

VHF Gain Control

15.0 dB

Power from Plugpack

DC Plugpack Voltage

6.0 V

DC Current Draw

50.0 mA

Product Dimensions

Length

158.0 mm

Width

80.0 mm

Depth

45.0 mm

Packaged Dimensions

Packaged Dimensions

23.5cm(Length) x 9.0cm(Width) x 6.0cm(Height)
