10 Way Home Theatre Surge Protected Powerboard

CAT.NO: MS4033

1/2

$109.00

Bulk Pricing

Qty 1 - 3

$109.00 / Unit

Qty 4 - 9

$97.95 / Unit

Qty 10 +

$86.95 / Unit

Store

Choose a store for stock availability

10 Way Home Theatre Surge Protected Powerboard

$109.00

Overview

This is the perfect addition to your home theatre, music gear or home office setup. This powerboard features 10 surge and spike protected sockets, including 2 wide sockets for large power adaptors. It also includes 2 USB ports for charging smartphones and tablets. Surge protection and EMI/RFI filtering protect against mains power fluctuations, with each socket protected three ways: active, neutral and earth. Additional protection is provided by the built-in circuit breaker. This powerboard also has telephone and data protection (for a network connection), satellite/cable TV video protection, and protection for your TV antenna.

Features:

Separate Telephone/Data Line and TV Antenna/Cable TV Protection
144,000A Surge Protection
2 USB Charging Sockets
2 Extra Wide Sockets

Power Filter:

Surge Protection: Metal Oxide Varistors
Supply Voltage: 250VAC
Current Rating: 10A max. 2500W
Protection Mode: A-N, N-E, E-A
Max Surge Current: 144,000A
Typical Capacitance: 400pF
Clamping Voltage (at 50A): <775V
Energy Absorption: 4300 joules
Response Time: <2ns
Filtration: EMI/RFI

Telephone Line:

Filter Type: Gas Tube Arrestor
Surge Current: 1200A (1kV/µs)
Impulse Discharge Current: 10kA (8/20µs)
Capacitance: <5pF
Clamping Voltage: 600V
TV Surge Protection: Gas Tube Arrestor
DC Strike Voltage: 230V to max. 600V
Surge Current: 4500A
Energy Dissipation: 225 joules
Response Time: <10ns

Included:

1 x 1.8m TV Coax Plug to TV Coax Plug
1 x 1.8m RJ45 to RJ45
1 x 1.8m RJ12 to RJ12
1 x 1.8m F61 Plug to F61 Plug
2 x RJ45 to RJ12 reducers

Specifications

USB Powered

USB Voltage Output Range

1.0V,5.0V,1.0V

USB Current Output

1.0A,2.0A

Mains powered

Mains Max Current

10.0 A

Max Input Power

2.0 W

Mains Item connection

Mains AU/NZ 3 Pin

Mains Lead Length

1.0 m

Mains Voltage Range

230.0V,240.0V

Frequency

50.0Hz-50.0Hz-50.0Hz

Powerboard or Multi-adaptor

Type of adaptor

Power Board

Number of Sockets

10.0 pc

Power Leads

Input Type

Mains AU/NZ 3 Pin

Output Type

Mains AU/NZ 3 Pin

Lead Length

1.0 m

Input Connection

Plug

Output Connection

Socket

Output Quantity

10.0 pc

Power Connection Adaptors

Input Type

Mains AU/NZ 3 Pin

Output Type

Mains AU/NZ 3 Pin

Output Quantity

10.0 pc

USB Charge Port

2.0 pc

Input Connection

Plug

Output Connection

Socket

Additional Surge Protection

Additonal Filter Type

Metal Oxide Varistor

Surge Current

1.0 A

Imulse Discharge Current

10.0 A

Capacitance

5.0 pF

Clamping Voltage

600.0 V

Additional Surge Protection

RJ12

Surge Protection

Protection Device

Metal Oxide Varistor

Maximum Surge Current

144.0 A

Clamp Voltage

775.0 V

Energy Absorption

1550.0 J

Response Time

2.0 ns

USB Connectivity

Supported USB Standards

USB 2.0

Number of USB ports

2.0 pc

Power Protection Device

Overload Trip Current

10.0A,10.0A,10.0A,10.0A

Reset Method

Manual Pushbutton,Manual Pushbutton

Product Dimensions

Length

360.0 mm

Width

125.0 mm

Height

32.0 mm

Packaged Dimensions

45.5cm(Length) x 24.6cm(Width) x 5.3cm(Height)

Articles

30 August 2023

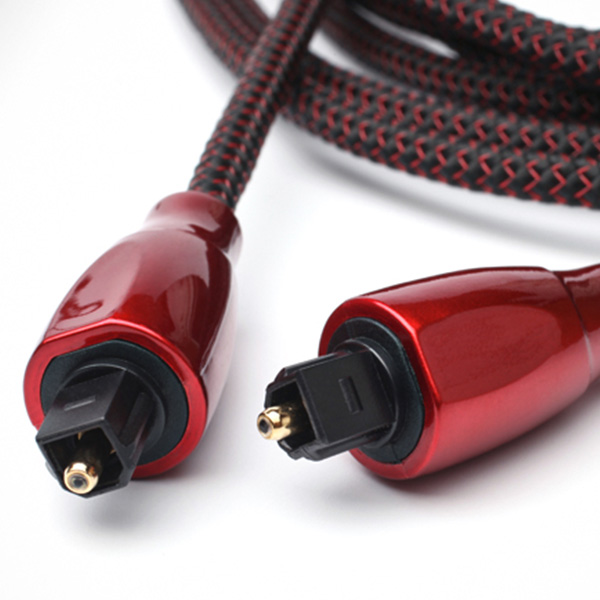

Sound at the Speed of Light
